OpenCPU 5G architecture
The Sanechips ZX298501S runs at 2 GHz and acts as both the application CPU and the 5G modem, removing the need for a separate host processor.
COMMERCIAL 5G CPE
BWC_Z1
Wi-Fi 6 AX1800OEM READYCommercial 5G CPE built on an OpenCPU platform.
BWC_Z1 combines the Sanechips ZX298501S 5G modem, Wi-Fi 6 AX1800 radios and five gigabit Ethernet ports in a compact vertical enclosure. As an OEM platform it is offered for rebranding, so partners can ship it under their own brand and firmware.

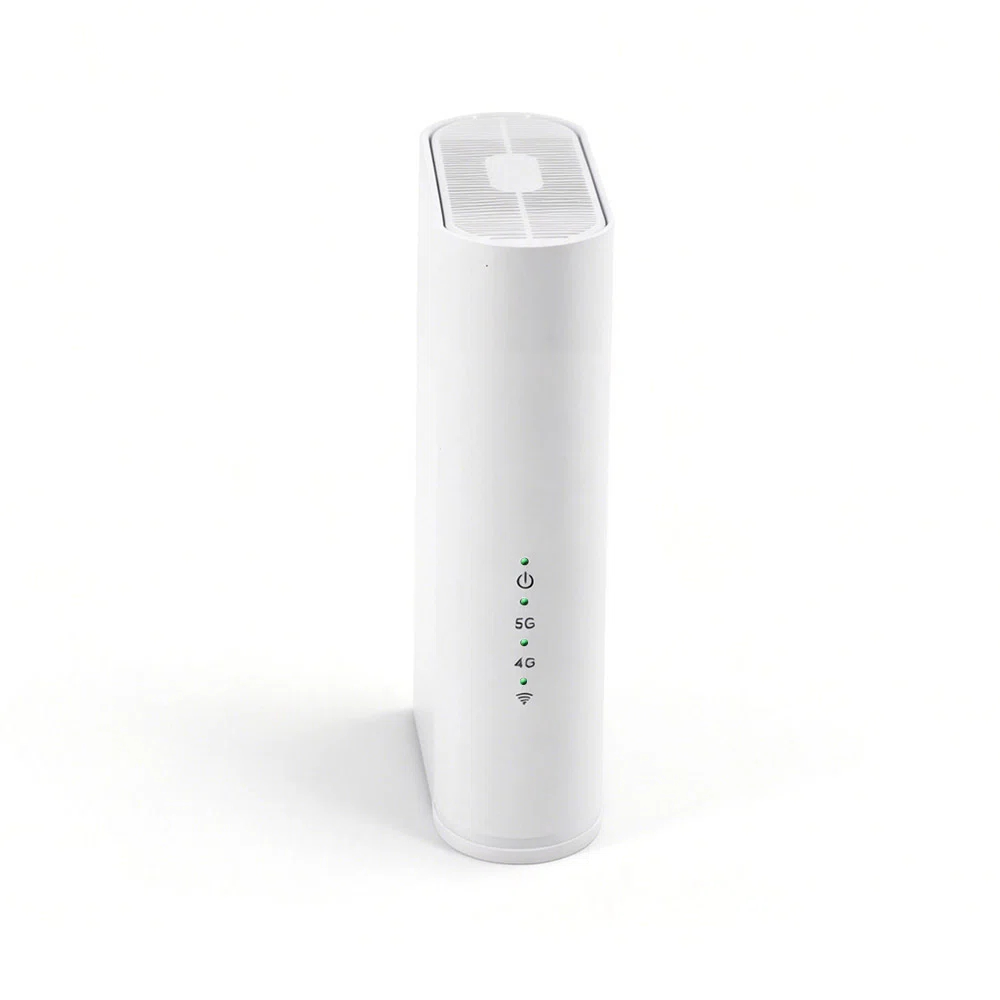

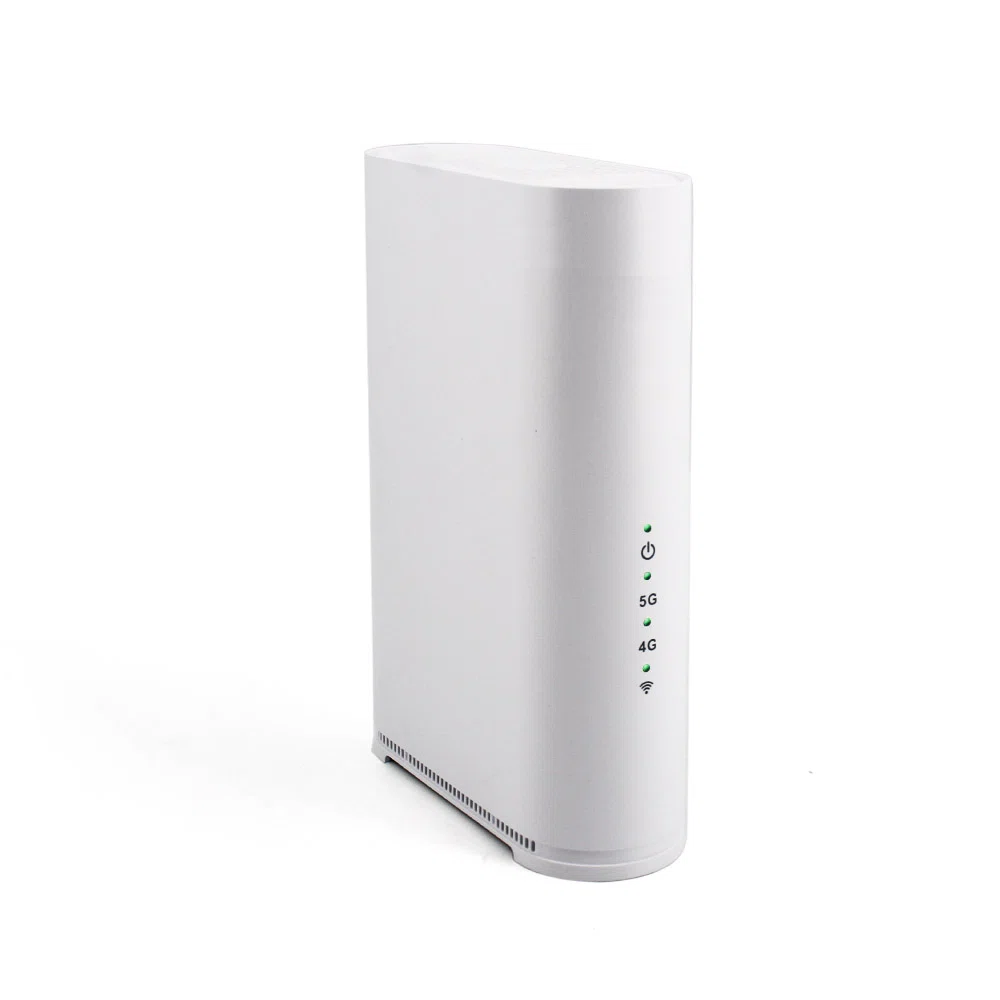

Product image
PLATFORM HIGHLIGHTS
One integrated platform for 5G access and Wi-Fi.
Wi-Fi 6 AX1800
AIC8800D80X2P delivers 4x4 MIMO 802.11ax on both 5 GHz and 2.4 GHz for dense commercial client loads.
5G NR and LTE bands
14 5G NR bands plus LTE FDD and TDD coverage, with 4x4 MIMO on N1, N41, N77 and N78 for high-throughput links.
Gigabit wired LAN
Four gigabit LAN ports plus a gigabit LAN/WAN uplink, alongside dual nano SIM for carrier flexibility and failover.
TECHNICAL SPECIFICATIONS
Cellular, Wi-Fi and hardware in detail.
Core specifications for the BWC_Z1 commercial 5G CPE platform.
Cellular & bands
- 5G NR bands
- N1 / N3 / N5 / N7 / N8 / N20 / N28 / N34 / N38 / N39 / N40 / N41 / N77 / N78
- LTE FDD bands
- B1 / B3 / B5 / B7 / B8 / B20 / B28
- LTE TDD bands
- B38 / B40 / B41 / B42 / B43
- Cellular MIMO
- 4x4 MIMO on N1 / N41 / N77 / N78
- 5G NR peak rate
- DL 4 Gbps / UL 900 Mbps
- LTE peak rate
- DL 300 Mbps / UL 50 Mbps
- SIM
- 2 x nano SIM
- Packet data
- PDP: IPv4 / IPv6 / IPv4v6
Wi-Fi & interfaces
- Wi-Fi standard
- Wi-Fi 6 (802.11ax), AX1800
- Wi-Fi chipset
- AIC8800D80X2P
- 5 GHz
- 4x4 MIMO 11ax, 1.2 Gbps
- 2.4 GHz
- 4x4 MIMO 11ax, 0.573 Gbps

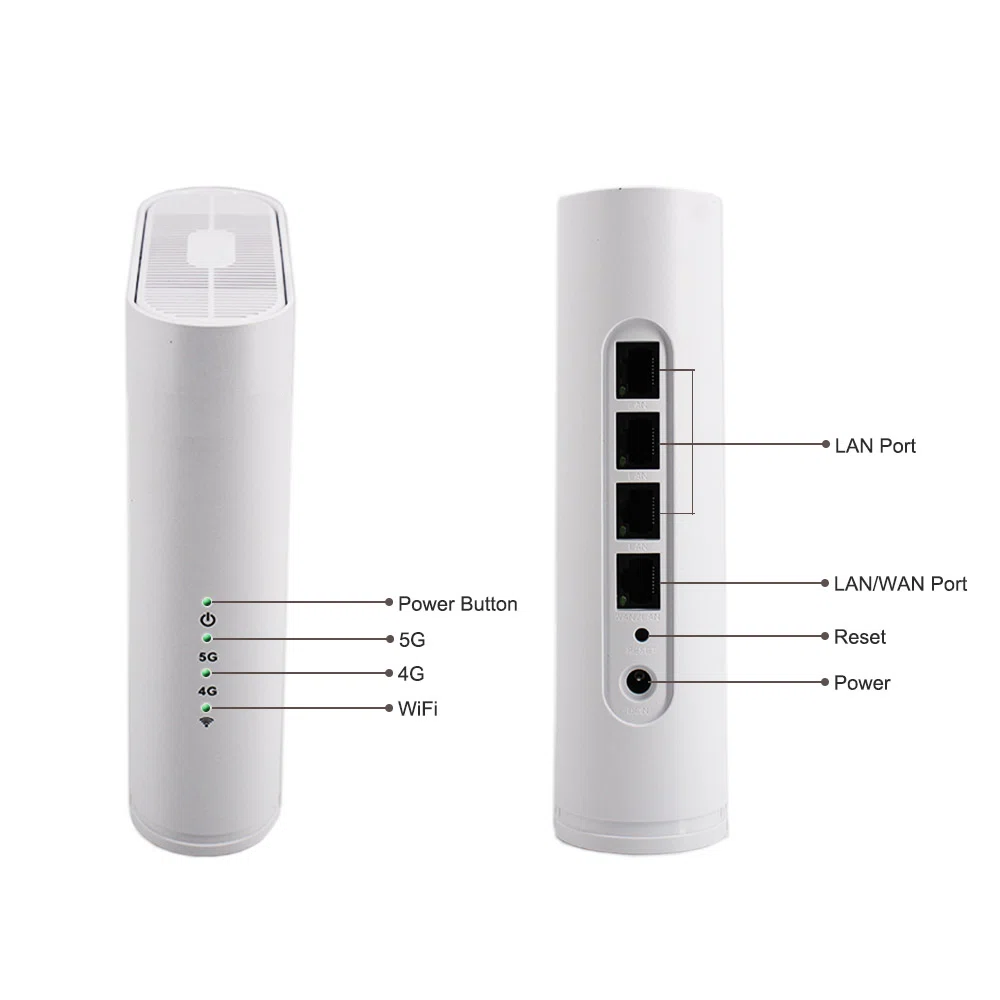

- Ethernet
- 3 x 10/100/1000 Mbps LAN + 1 x LAN/WAN uplink
- Debug port
- 1 x USB Type-C
- Buttons & power
- Power button, Reset, DC power jack
Hardware platform
- Solution
- OpenCPU
- SoC
- Sanechips ZX298501S
- CPU clock
- 2 GHz
- NAND flash
- 4 Gb
- DDR
- 4 Gb
- Battery (optional)
- 4500 mAh built-in
- Material
- ABS
- Protection level
- IP30
Environment & management
- Dimensions
- 136 x 52 x 190 mm
- Weight
- 516 g
- Installation
- Vertical desktop or shelf placement
- Remote management
- BW_CLOUD
- Network features
- Port mapping and mainstream network protocols
- VPN
- WireGuard
DEPLOYMENT & MANAGEMENT
Plug and play, then managed from the cloud.
Plug and Play with auto APN
Insert a nano SIM and the CPE brings the link up on its own, negotiating APN settings without manual entry.
BW_CLOUD remote management
Register the device to BW_CLOUD for centralised monitoring and remote administration across a fleet.
WireGuard VPN
Build encrypted site-to-site or remote-access tunnels directly on the CPE.
Cell tower details
The interface reports detailed information about the base station the device is currently attached to.

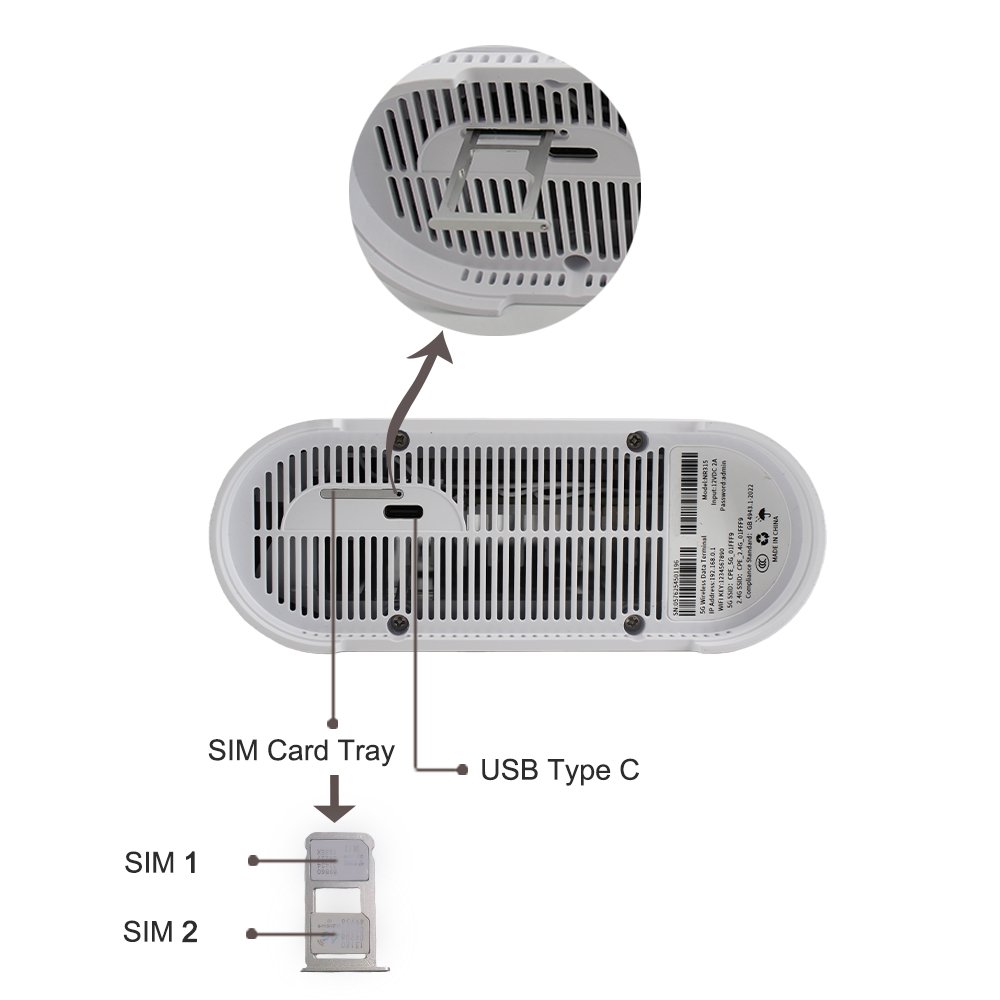

Dual nano SIM tray
Two nano SIM slots sit behind the bottom cover, selectable for carrier choice or failover.
Full network feature set
Port mapping and support for mainstream network protocols cover typical commercial gateway duties.
OEM & ODM
Ship BWC_Z1 under your own brand.
BWC_Z1 is primarily offered as an OEM platform. We can adapt branding, packaging, firmware defaults, band configurations and management integration to suit your market.
START YOUR DEPLOYMENT
Need BWC_Z1 configured for your network?
Tell us your target bands, throughput, port and management requirements. Our team will confirm the right BWC_Z1 configuration for your deployment.
