BWR_352_Outdoor
Outdoor IPX6 Enclosure Kit for the BWR_352 Industrial 4G Router
Key Highlights
- Outdoor-ready IPX6 waterproof enclosure, built from UV-stabilised ABS (148 × 148 × 65 mm)
- Drop your existing BWR_352 board straight in — same firmware, same features, no redesign
- 3 × waterproof cable glands: 4G antenna, Wi-Fi antenna, power / serial / Ethernet cables
- PoE adapter option — run power and data over a single Ethernet cable when no DC source is on site
- Wall-mount bracket and pole clamp mounting (band clamp) for cabinets, poles and street furniture
At a Glance
- Material
- ABS
- Waterproof
- IPX6
- Size (L×W×H)
- 148 × 148 × 65 mm
- Cable glands
- 3 × waterproof
- Mounting
- Wall / pole clamp
- Power
- DC or PoE adapter
Features & Benefits

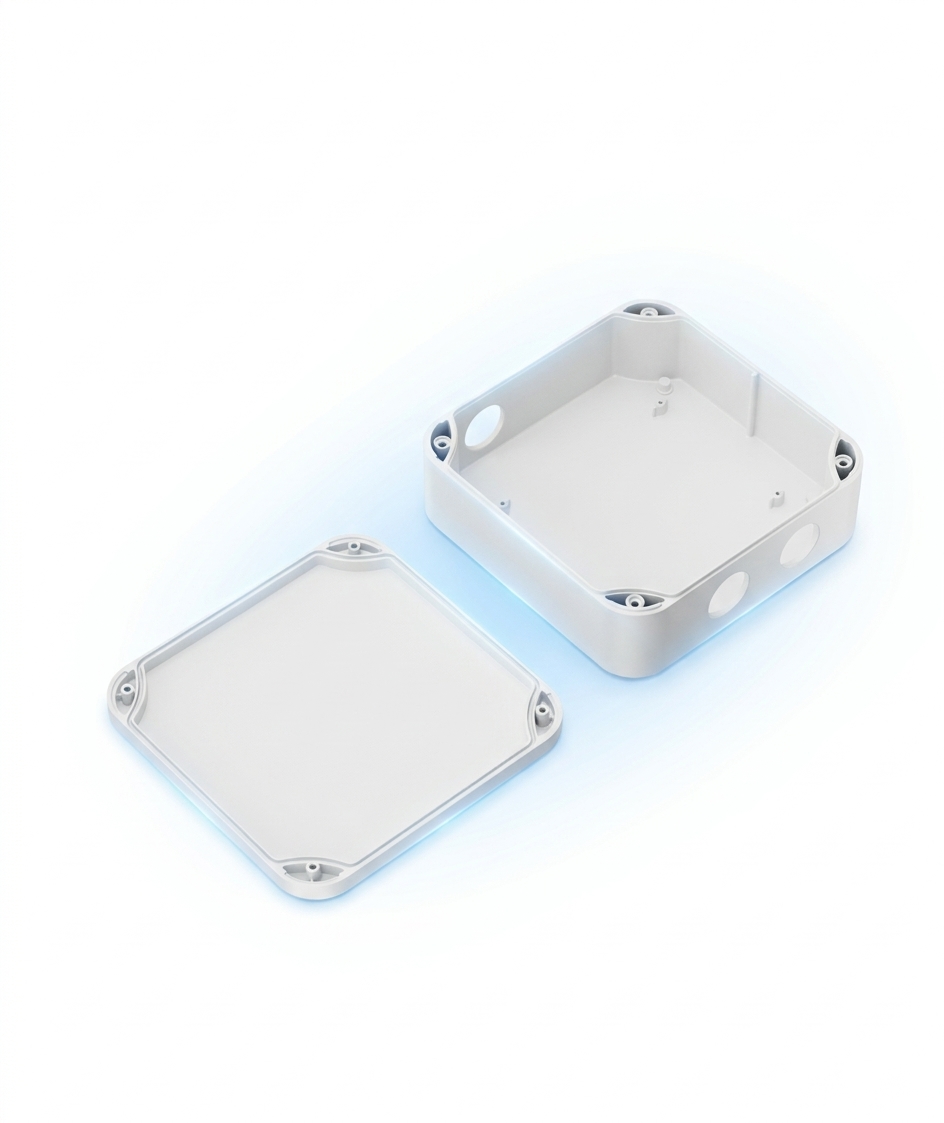

IPX6 Outdoor Enclosure
Sealed IPX6 ABS housing with a moulded gasket keeps rain, hose spray and dust away from the router board, so BWR_352 can be deployed where cabinets are not available.

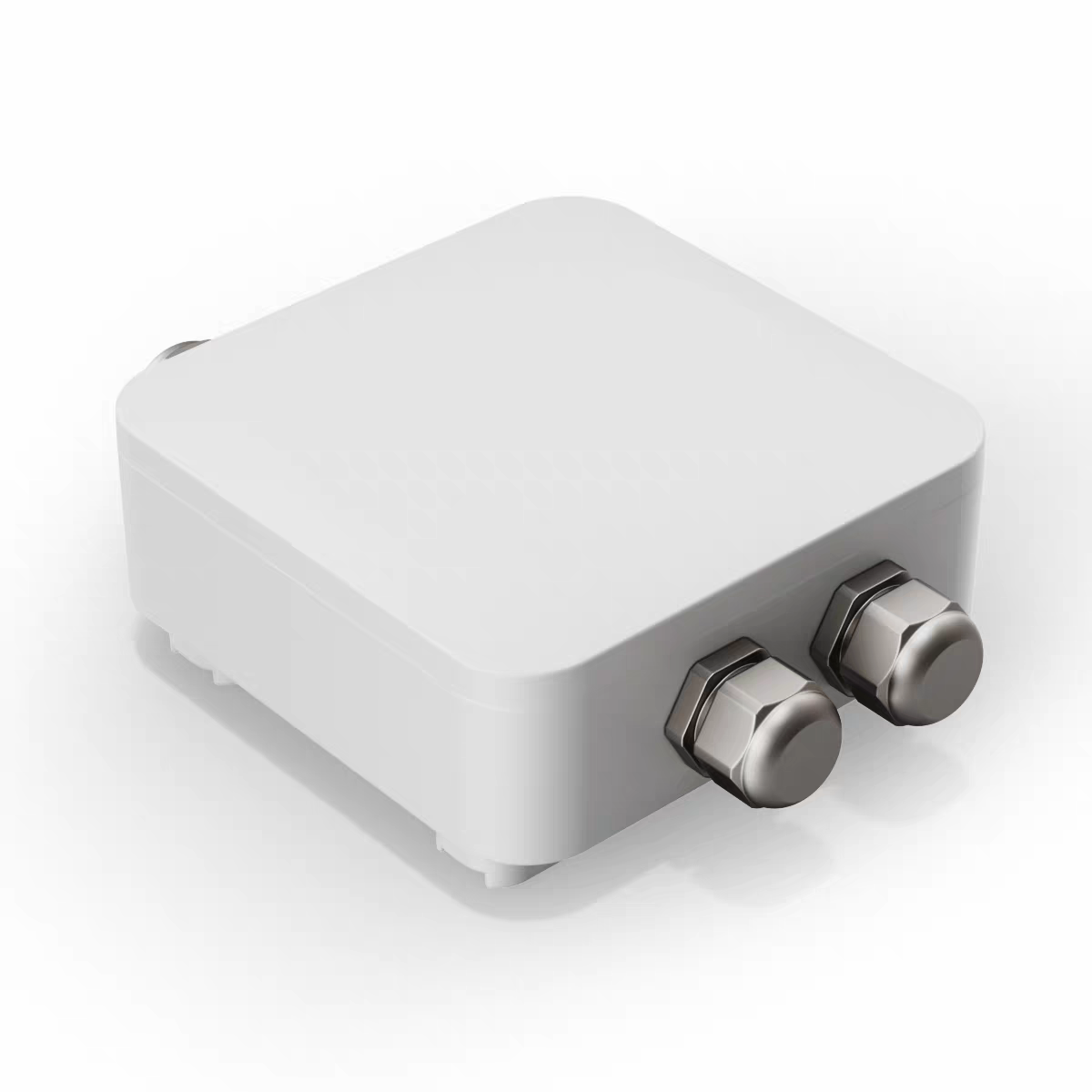

3 × Waterproof Cable Glands
Three glands provide watertight entries for the 4G suction antenna, the Wi-Fi suction antenna and the power, serial or Ethernet cable run — with strain relief on every cable.
PoE Adapter Option
Where a local DC source is inconvenient, add a PoE adapter and feed the router over the Ethernet cable itself — single-cable installation that reaches up to 100 m.

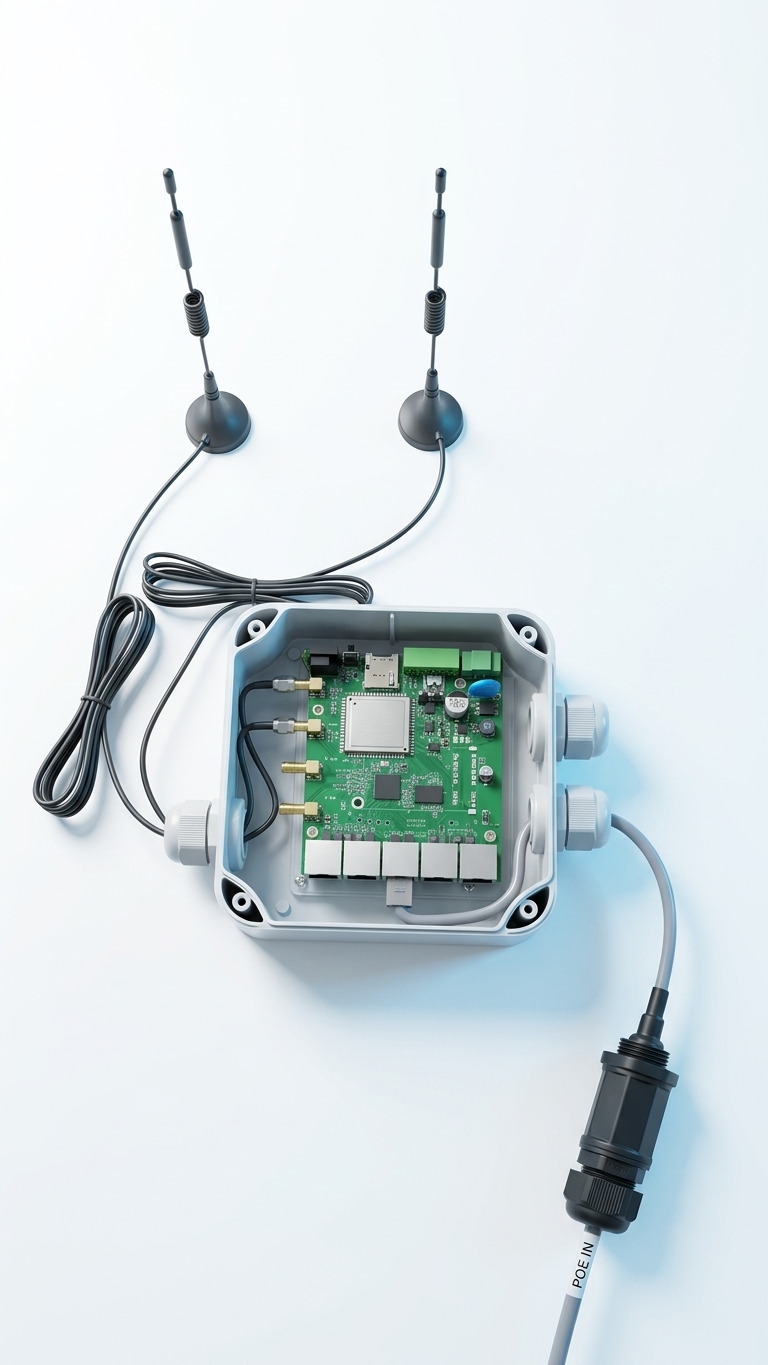

BWR_352 Board Inside
The same Cat 4 / Cat 1 LTE board, dual SIM failover, 5 × Ethernet, RS232/RS485 and DI/DO ports — only the mechanical envelope changes.
Wall & Pole Mounting
Four internal mounting bosses plus reinforced corner holes support wall-mount brackets and band clamps, so the unit fixes to walls, masts and poles.
Same Industrial Features
BWR_OS on OpenWrt 24.10, IPsec / OpenVPN / WireGuard, Modbus RTU polling, MQTT reporting and BW Cloud remote management all carry over unchanged.
Antennas Outside the Box
The magnetic-base 4G and Wi-Fi suction antennas mount on the outside of the enclosure and connect through dedicated glands, keeping RF performance while the board stays sealed.
PoE When DC Is Hard
If there is no convenient DC outlet on site, add the PoE adapter and power the router through the same Ethernet cable that carries the data — one cable, one gland.
Cable Routing
One gland for the 4G antenna, one for the Wi-Fi antenna and one for the cable run — 9-48 VDC power, RS232/RS485 serial or the Ethernet/PoE link, all watertight.
Technical Specifications
Outdoor Enclosure Kit
BWR_352 Board (supplied in the kit)
Software Features
BWR_352_Outdoor runs the same BWR_OS build as the standard BWR_352, so every routing, VPN, telemetry and management feature is available out of the box.
Security
- • OpenVPN, IPsec, GRE, L2TP
- • WireGuard & ZeroTier support
- • Firewall with custom rules
- • VLAN support
- • MAC filtering
- • DDNS support
Networking
- • Static & dynamic routing
- • Load balancing & WAN failover
- • QoS traffic management
- • DHCP server/client
- • Port forwarding & NAT
- • Modbus RTU/TCP to MQTT
Management
- • BW Cloud remote management
- • SMS control & alerts
- • SNMP monitoring
- • Event logging
- • Scheduled reboot
- • Remote firmware update
